Deciphering Keyway Identification in FANUC Motor Models

Time: 2024-09-27 Hits: 1

FANUC motors are an integral part of the automation industry, providing precision and reliability in a variety of applications. Understanding the specifics of these motors, including keyway identification, is critical to ensuring optimal performance and compatibility with machinery. This article provides an in-depth look at the importance of keyway identification and how it plays a key role in the selection and operation of FANUC motors.

Understanding Keyways

A keyway is a slot or recess cut into the shaft of a motor or component to accommodate a key. The key fits into the keyway and connects the motor to the load, thereby efficiently transmitting torque.FANUC motors may have several keyway types, including rectangular and square profiles. Each type has a specific application. By checking the model number, the user can determine the type of keyway used in a particular motor, which aids in proper installation and function.

Common Keyway Identifiers

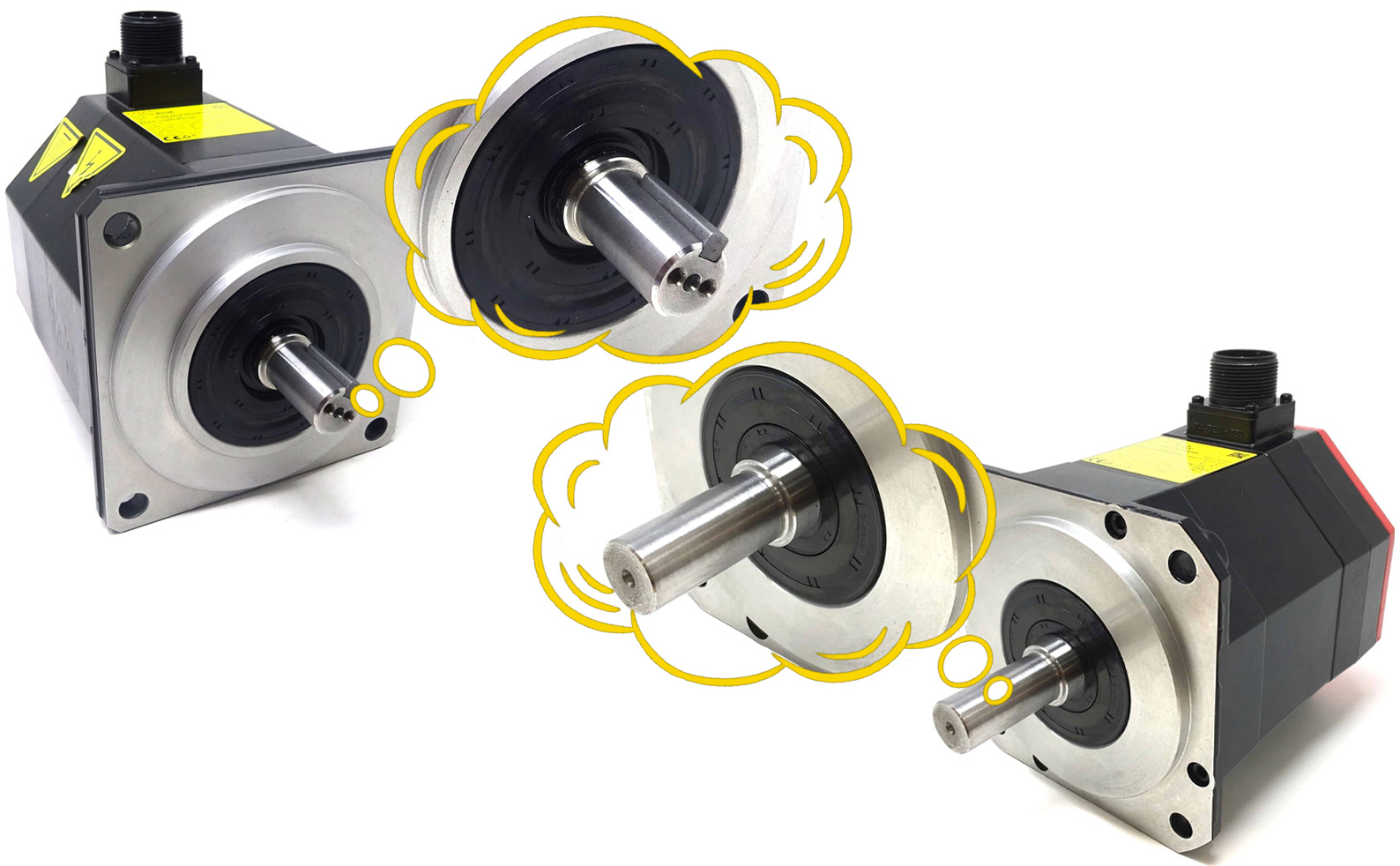

FANUC uses specific codes in its motor models to indicate keyway type. Certain letters or numbers may represent different keyway sizes or shapes. For example, A06B-0034-B075#0008 is for a model with a keyway, and A06B-0075-B103 is for a model without a keyway; the key is whether or not the model has a # suffix.

Keyway Identification FAQ:

1 - How do I measure the keyway?

  To measure the keyway, use calipers to determine the width and depth of the slot on the motor shaft. The measurements should match the specifications of the key used to ensure a proper fit.

2 - What happens if the wrong keyway is used?

  Using the incorrect keyway can result in misalignment, slippage and excessive wear on the motor and connected parts. This misalignment can lead to inefficient operation and potential equipment failure.

3 - Are there standard keyway sizes for FANUC motors?

  Yes, keyway dimensions for FANUC motors generally conform to industry standards, but specific dimensions may vary from model to model. Always refer to the manufacturer's specifications for precise measurements.

4 - Can I modify the keyway to make it fit better?

  While some modifications can be made, it is generally not recommended. Changing the keyway can compromise the integrity of the motor and cause performance issues. It is best to select the right motor for your requirements from the start.

5 - Where can I find additional resources on FANUC keyways?

  Comprehensive resources including technical manuals and application guides are available on the official FANUC website and through authorized distributors. These provide in-depth information on keyway specifications and motor compatibility.

Conclusion

In conclusion, understanding keyway identification in FANUC motors allows users to make informed decisions that will enhance their operations. For help in selecting the right FANUC motor and understanding keyway identification, contact Songwei today. Our team of experts will provide you with tailored advice and support to meet your specific needs, ensuring that your machines operate at peak efficiency.
